Configuration management
Each configuration defines the expected layout an inspection is judged against. Editing a configuration bumps its version, which is recorded on every future inspection.
2 active configurations have no reference image (20S4P, 24S3P). Inspections still run, but accuracy is reduced and the model is told to lower its confidence. Upload a photograph of a known-good pack for each.
What the system has learned
| Configuration | Confirmed packs | Verdicts agreed | Good / defect | Calibration | Learned pattern |
|---|---|---|---|---|---|
| 20S3P | 0 | — | 0 / 0 | defaults | Wiring rule |
| 20S4P | 0 | — | 0 / 0 | defaults | Wiring rule |
| 24S3P | 0 | — | 0 / 0 | defaults | Wiring rule |
Open any inspection and confirm or correct its verdict. Each answer relearns that configuration: the expected orientation pattern, the normal photo-quality range on this line, and example photos for the AI model.
Configurations
| Configuration | Series | Parallel | Expected cells | Reference | Version | Status | |
|---|---|---|---|---|---|---|---|

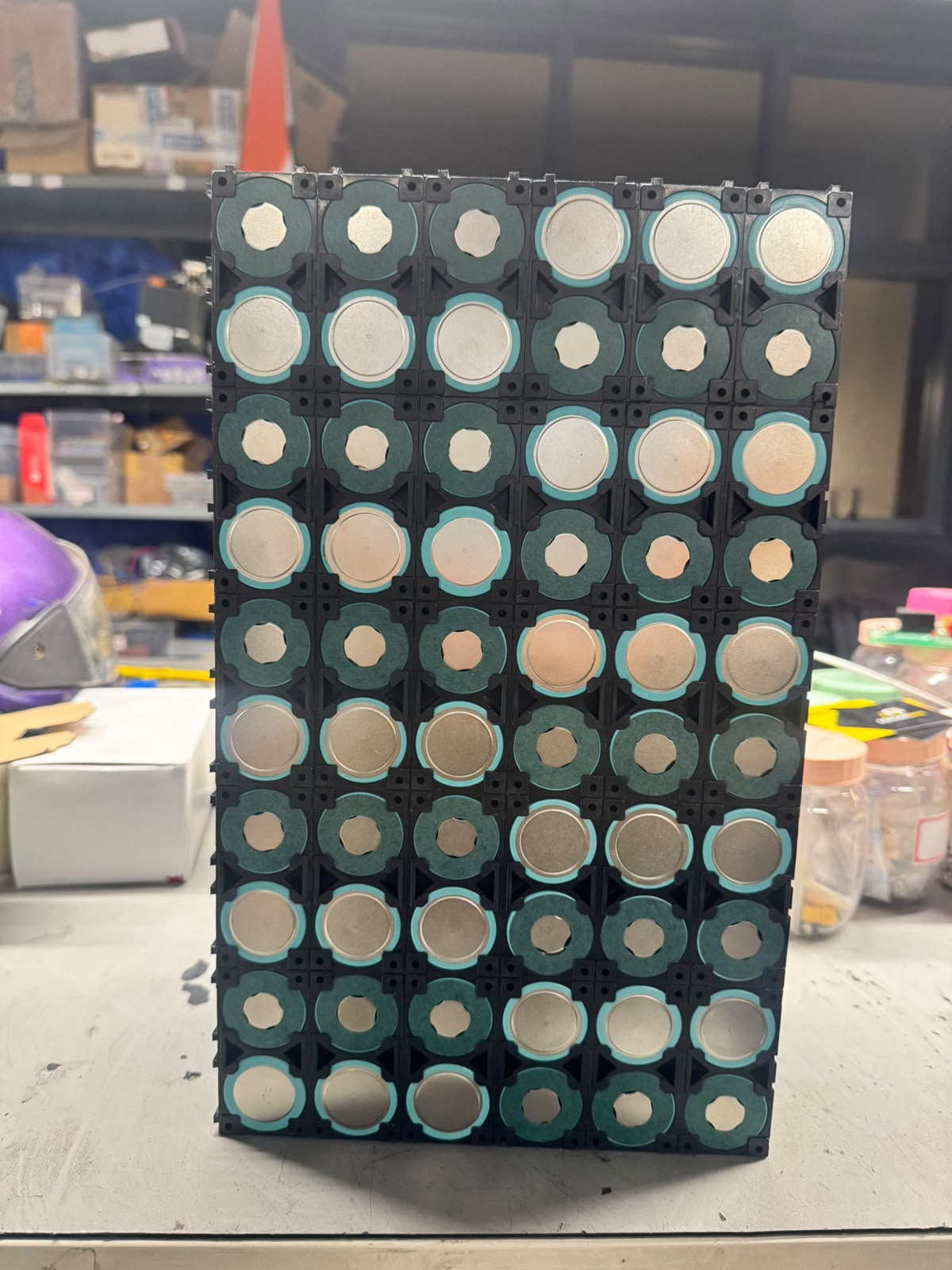

| 20S3P Physical layout: 10 rows x 6 columns, 60 cells. Each row holds TWO parallel groups of 3 - columns 1-3 are one group, columns 4-6 are another - giving 20 groups of 3. Adjacent groups are inserted facing opposite ways for the series connection, so a correct pack is a checkerboard: within a row the left and right groups face opposite ways, and the pattern flips from row to row. ORIENTATION INDICATORS, use both: terminal shape - a small raised button inside a wide insulating ring is POSITIVE, a large flat disc filling the holder is NEGATIVE. Insulator ring colour - on packs built with colour-coded rings the YELLOW ring is the negative face and the GREEN/TEAL ring is the positive face, so ring colour alone tells you which way a cell faces. ALL THREE cells in a group must show the same ring colour and the same terminal shape. One odd ring colour among its two neighbours means that cell is inserted backwards - this is the most common defect on this line and it does NOT change the cell count, so check every group individually. Metal tone, tarnish, brightness and glare vary between cells and mean nothing. | 20 | 3 | 60 | ✓ View | v5 | Active | |
| 20S4P 20 series groups of 4 parallel 15Ah cells. | 20 | 4 | 80 | ⚠ Missing | v1 | Active | |
| 24S3P 24 series groups of 3 parallel 15Ah cells. | 24 | 3 | 72 | ⚠ Missing | v1 | Active |
